Product Description

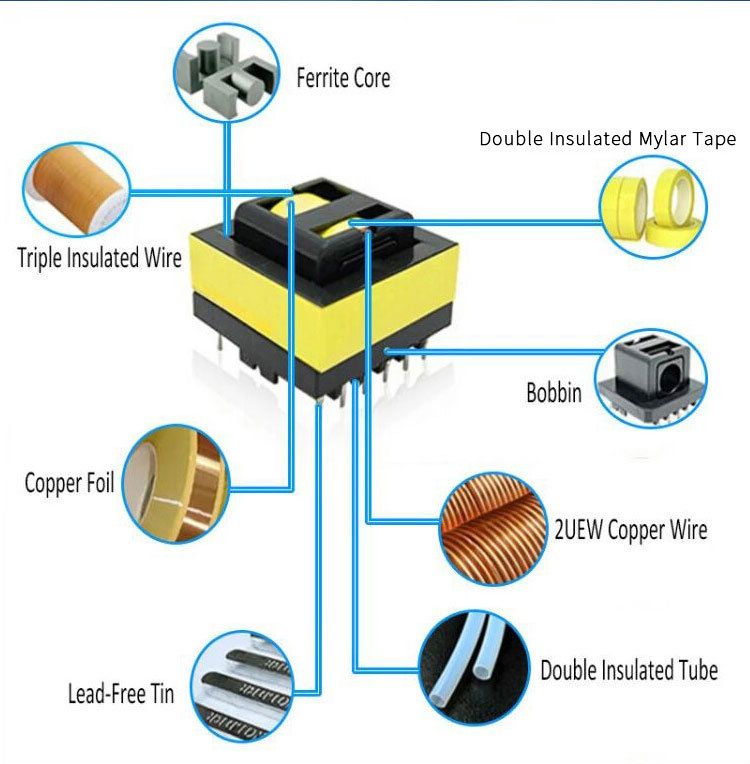

High Frequency Transformer
| Specification | Testing Items | Features |
| 1) Frequency Range:1KHz to 200KHz 2) Output Power: 1W to 10,000W 3) Output Voltage: 0.5 to 10,000Vrms 4) Output Current: 0.01A to 1000A | 1) Turns Ratio & Inductance 2) Phase Test & Safety Test 3) DC Resistance Test 4) High Voltage Test | Low Loss Low Temperature Rise Large Transmission Power Stable performance |
Applications
1) Power supply
2) The electric car charger
3) Electrical / Medical / Communication equipments
4) The solar energy & inverter equipments
5) Vehicle electronic equipment industry
6) UPS, VCD/DVD players, audio and visual equipment TV sets,
7) Microcomputer equipment, printers, Terminals
Company Information
Chipsen specializes in transformers, inductors and coils 16 years.
We have below advantages:
1) High Quality:Certified by ISO, UL, ROHS SGS, REACH and CQC, 100% full inspection, warranty 5 years.

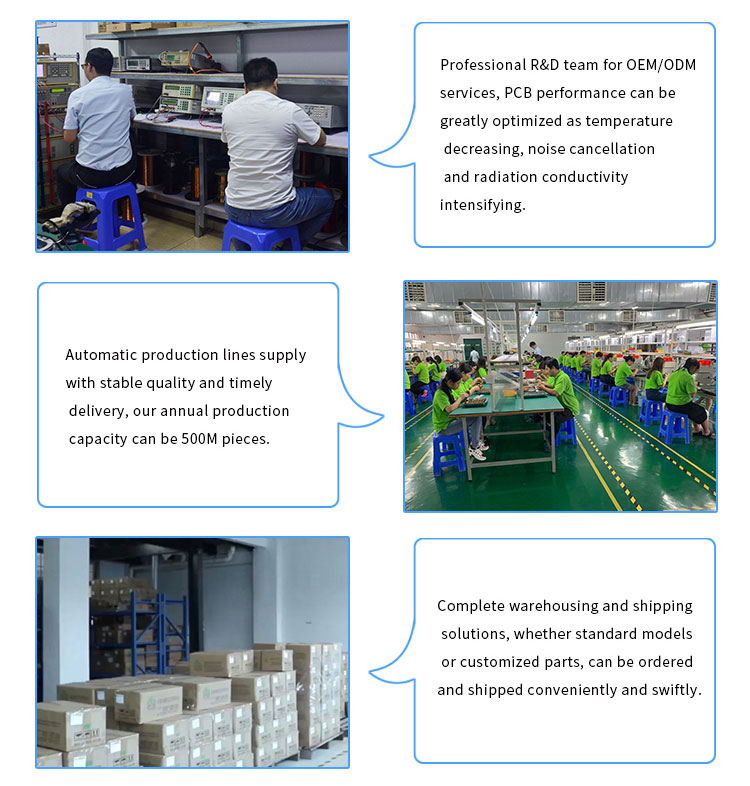

2) Strong R&D team for OEM & ODM service.
3) Service: provide customers with the most satisfactory service to solve the product difficult
Note
| 1) MOQ | 500PCS |
| 2) Payment terms | 50% deposit of total amount in advance and the rest before ship |
| 3) Samples | Samples is free, but the fee of freight must be paid by recipient |
| 4) Port | Shenzhen |

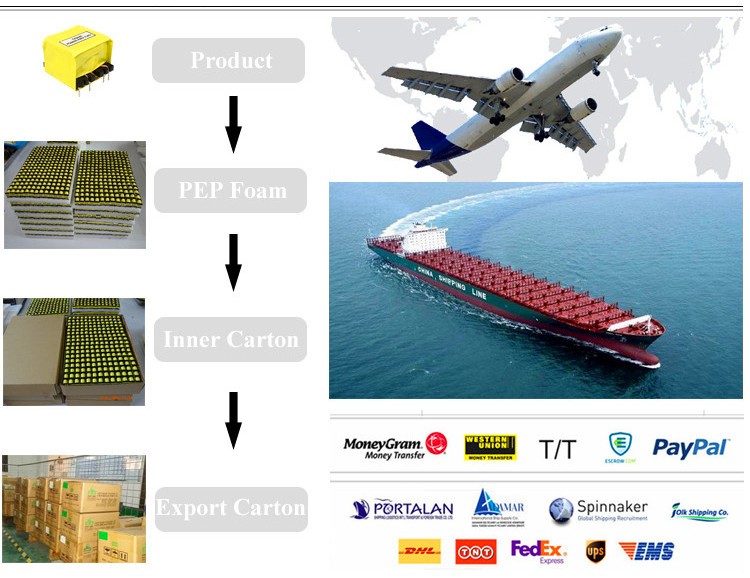

| 5) Package | As your requirement |
| We'll feel appreciated if you can provide the parameters or the photo of the item. The size, electrical performance of the products could be designed as customer requirements in R&D. |
FAQ
How to get samples?
Chipsen Sample Policy
- For 1-10pcs, and total value below 100RMB: free of sample charge
- For 10pcs, sample charge is 1.5 times of unit price
How long the sample can be ready?
- 3-5 days for new samples, 1 day for sample in stock
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
