Model Number :

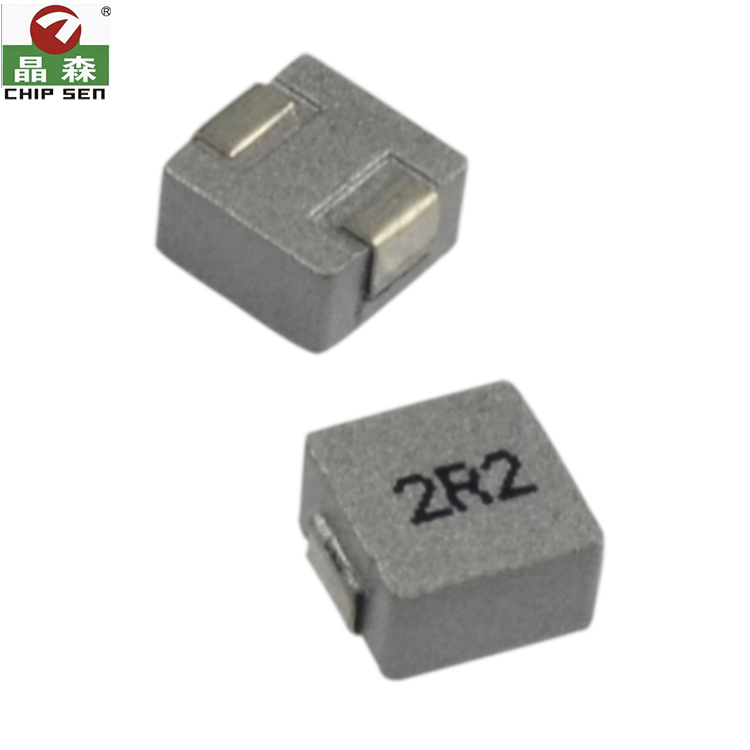

SDRH104R-2R2MT
Type :
Coupled Inductor, SDRH104R
Place of Origin :
Guangdong, China
Brand Name :
CHIPSEN
D/C :
0.01A--500A
Application :
Power
Brand :
CHIPSEN
Supplier Type :
ODM OEM, Factory Manufacturer
Cross Reference :
CHDP1010-15uH-M
Tolerance :
±30%
Operating Temperature :
-40℃ to 85℃
Rated Power :
5-5000W
Package Type :
smd
Resistance Tolerance :
it depends
Temperature Coefficient :
Class A, E, B, F, H, N
Resistance :
50Hz-5MHz
Media Available :
Chipsen E-catalog
Frequency - Self Resonant :
1KHZ-500KHZ
Features :
smd structure/Stable/High resistence
Height - Seated (max) :
customized
Function :
Filter and isolation
Inductance :
2.2uH
Q @ Freq :
it depends
Mounting Type :
surface mount
Package / Case :
with casing
Size / Dimension :
Customized
Heigh :
customized
Number of Coils :
Customized
Inductance - Connected In Parallel :
2.2±30%
Inductance - Connected In Series :
2.2±30%
Current Rating - Parallel :
1.65A
Current Saturation - Parallel :
2A
Current Saturation - Series :
2A
DC Resistance (DCR) - Parallel :
17mΩ
DC Resistance (DCR) - Series :
17mΩ
Shielding :
shielded
Material - Core :
magnetic/customized
Current Rating (amps) :
1.65A
Current - Saturation :
2A
DC Resistance (DCR) :
17Ω
Product Type :
SMD Inductor
Certification :
ISO9001:2015, IATF16949:2016, U/L, RoHS, CQC
Warranty :
3 Years
Samples :
5 Free Samples Available
MOQ :
1000 Pcs
Safety :
Lead-free Products
Package :
Boxes/Bulk
ODM OEM :
Acceptable
MOQ :
1000 pieces
Price :
CN¥5.75/pieces 1000-4999 pieces
